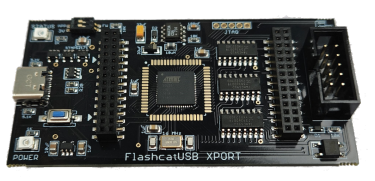

FlashcatUSB XPORT
This is a very useful and versatile programmer. Built using a full-speed USB microcontroller, this programmer supports both 5V and 3V IO devices, and has an internal chargepump circuit that allows 12V programming support for older EPROM devices. The new design (PCB 2.0) features both a parallel interface and serial interface.


SPI socket adapters (SO8, SO16, DIP8, WSON8) are available here
Parallel sockets (PLCC-32, TSOP-48, TSOP-56) are available here


Hardware Features:


  • Backwards compatible with FlashcatUSB Classic

  • Fast 16MHz RISC processor with 64KB of internal memory

  • USB 2.0 compatible

  • Voltage support: 5V and 3V devices; 12V VPP

  • Upgradable firmware over USB

  • On board reset button (reset and bootloader mode)

  • Supports parallel Flash: NOR X8 and X16

  • Supports OTP/UV EPROM: 27 Series devices

  • Supports Serial memory: SPI and I2C devices

  • Supports NAND memory: SLC up to 4Gbit


MADE IN USA



A FlashcatUSB XPORT (PCB 2.0) and a USB 2.0 cable. Parallel and serial sockets sold separately.
In stock

$39.99






FlashcatUSB XPORT with TSOP-56 (Type A) socket




Current Supported Features



AVR Firmware 4.33

Multi-voltage I/O devices 3.3v and 5v memory devices
Parallel / Multi-Purpose Flash memory Series 28 and 29
NAND memory devices Supports all SLC x8 NAND devices
Supports high-density NOR Supports addresses up to A27
Series 25/26 SPI Flash Memory SPI / SQI devices supported
I2C and TWI EEPROM devices All 24Cxx supported

Compatible with these parallel NOR Flash devices:

Intel
28F064P30(T) (64Mbit)
28F064P30(B) (64Mbit)
28F128P30(T) (128Mbit)
28F128P30(B) (128Mbit)
28F256P30(T) (256Mbit)
28F256P30(B) (256Mbit)
A28F512 (512Kbit)
28F320J5 (32Mbit)
28F640J5 (64Mbit)
28F320J3 (32Mbit)
28F640J3 (64Mbit)
28F128J3 (128Mbit)
28F256J3 (256Mbit)
28F800C3(T) (8Mbit)
28F800C3(B) (8Mbit)
28F160C3(T) (16Mbit)
28F160C3(B) (16Mbit)
28F320C3(T) (32Mbit)
28F320C3(B) (32Mbit)
28F640C3(T) (64Mbit)
28F640C3(B) (64Mbit)
28F008SA (8Mbit)
28F400B3(T) (4Mbit)
28F400B3(B) (4Mbit)
28F800B3(T) (8Mbit)
28F800B3(B) (8Mbit)
28F160B3(T) (16Mbit)
28F160B3(B) (16Mbit)
28F320B3(T) (32Mbit)
28F320B3(B) (32Mbit)
28F640B3(T) (64Mbit)
28F640B3(B) (64Mbit)
28F004B5(T) (4Mbit)
28F200B5(T) (2Mbit)
28F400B5(T) (4Mbit)
28F800B5(T) (8Mbit)
28F004B5(B) (4Mbit)
28F200B5(B) (2Mbit)
28F400B5(B) (4Mbit)
28F800B5(B) (8Mbit)
AMD
AM29F200(T) (2Mbit)
AM29F200(B) (2Mbit)
AM29LV002B(T) (2Mbit)
AM29LV002B(B) (2Mbit)
AM29LV065D (64Mbit)
AM29F040 (4Mbit)
AM29F010B (1Mbit)
AM29F040B (4Mbit)
AM29F080B (8Mbit)
AM29F016B (16Mbit)
AM29F016D (16Mbit)
AM29F032B (32Mbit)
AM29F032B (32Mbit)
AM29LV200(T) (2Mbit)
AM29LV200(B) (2Mbit)
AM29F200(T) (2Mbit)
AM29F200(B) (2Mbit)
AM29LV400(T) (4Mbit)
AM29LV400(B) (4Mbit)
AM29F400(T) (4Mbit)
AM29F400(B) (4Mbit)
AM29LV800(T) (8Mbit)
AM29LV800(B) (8Mbit)
AM29F800(T) (8Mbit)
AM29F800(B) (8Mbit)
AM29LV160B(T) (16Mbit)
AM29LV160B(B) (16Mbit)
AM29DL322G(T) (32Mbit)
AM29DL322G(B) (32Mbit)
AM29DL323G(T) (32Mbit)
AM29DL323G(B) (32Mbit)
AM29DL324G(T) (32Mbit)
AM29DL324G(B) (32Mbit)
AM29LV320D(T) (32Mbit)
AM29LV320D(B) (32Mbit)
AM29LV320M(T) (32Mbit)
AM29LV320M(B) (32Mbit)
Winbond
W49F020 (2Mbit)
W49F002U (2Mbit)
W29EE512 (512Kbit)
W29C010 (1Mbit)
W29C020 (2Mbit)
W29C040 (4Mbit)
W29GL256S (256Mbit)
W29GL256P (256Mbit)
W29GL128C (128Mbit)
W29GL064CT (64Mbit)
W29GL064CB (64Mbit)
W29GL032CT (32Mbit)
W29GL032CB (32Mbit)
SST
29EE010 (1Mbit)
29LE010/29VE010 (1Mbit)
39VF401C/39LF401C (4Mbit)
39VF402C/39LF402C (4Mbit)
39SF512 (512Kbit)
39SF010 (1Mbit)
39SF020 (2Mbit)
39SF040 (4Mbit)
39LF010 (1Mbit)
39LF020 (2Mbit)
39LF040 (4Mbit)
39VF200 (2Mbit)
39VF400 (4Mbit)
39VF800 (8Mbit)
39VF160 (16Mbit)
39VF1681 (16Mbit)
39VF1682 (16Mbit)
39VF1601 (16Mbit)
39VF1602 (16Mbit)
39VF3201 (32Mbit)
39VF3202 (32Mbit)
39VF6401 (64Mbit)
39VF6402 (64Mbit)
39VF6401B (64Mbit)
39VF6402B (64Mbit)
Atmel
AT29C010A (1Mbit)
AT49F512 (512Kbit)
AT49F010 (1Mbit)
AT49F020 (2Mbit)
AT49F040 (4Mbit)
AT49F040T (4Mbit)
AT49BV/LV16X (16Mbit)
AT49BV/LV16XT (16Mbit)
MXIC
MX29F040 (4Mbit)
MX29F080 (8Mbit)
MX29F016 (16Mbit)
MX29F800T (8Mbit)
MX29F800B (8Mbit)
MX29F1610 (16Mbit)
MX29F1610MC (16Mbit)
MX29F1610MC (16Mbit)
MX29F1610A (16Mbit)
MX29F1610B (16Mbit)
MX29SL800CT (8Mbit)
MX29SL800CB (8Mbit)
MX29L3211 (32Mbit)
MX29LV040 (4Mbit)
MX29LV400T (4Mbit)
MX29LV400B (4Mbit)
MX29LV800T (8Mbit)
MX29LV800B (8Mbit)
MX29LV160DT (16Mbit)
MX29LV160DB (16Mbit)
MX29LV320T (32Mbit)
MX29LV320B (32Mbit)
MX29LV640ET (64Mbit)
MX29LV640EB (64Mbit)
MX29GL128F (128Mbit)
MX29GL256F (256Mbit)
MX29LV128DT (128Mbit)
MX29LV128DB (128Mbit)
Spansion / Cypress
S29AL004D(B) (4Mbit)
S29AL004D(T) (4Mbit)
S29AL008J(B) (8Mbit)
S29AL008J(T) (8Mbit)
S29AL016M(B) (16Mbit)
S29AL016M(T) (16Mbit)
S29AL016D(B) (16Mbit)
S29AL016D(T) (16Mbit)
S29AL016J(T) (16Mbit)
S29AL016J(B) (16Mbit)
S29AL032D (32Mbit)
S29AL032D(B) (32Mbit)
S29AL032D(T) (32Mbit)
S29GL128 (128Mbit)
S29GL256 (256Mbit)
S29GL512 (512Mbit)
S29GL01G (1Gbit)
S29JL032J(T) (32Mbit)
S29JL032J(B) (32Mbit)
S29JL064J (64Mbit)
S29GL032M (32Mbit)
S29GL032M(B) (32Mbit)
S29GL032M(T) (32Mbit)
S29JL032J(B) (32Mbit)
S29JL032J(T) (32Mbit)
S29JL032J(B) (32Mbit)
S29JL032J(T) (32Mbit)
S29JL032J(B) (32Mbit)
S29JL032J(T) (32Mbit)
S29GL064M (64Mbit)
S29GL064M (64Mbit)
S29GL064M(T) (64Mbit)
S29GL064M(B) (64Mbit)
S29GL064M (64Mbit)
S29GL128M (128Mbit)
S29GL256M (256Mbit)
S29GL032N (32Mbit)
S29GL064N (64Mbit)
S29GL128N (128Mbit)
S29GL256N (256Mbit)
S29GL512N (512Mbit)
S29GL128S (128Mbit)
S29GL256S (256Mbit)
S29GL512S (512Mbit)
S29GL128P (128Mbit)
S29GL256P (256Mbit)
S29GL512P (512Mbit)
S29GL01GP (1Gbit)
S29GL512T (512Mbit)
S29GL01GS (1Gbit)
S29GL01GT (1Gbit)
S70GL02G (1Gbit)
S29PL032J (32Mbit)
S29PL064J (64Mbit)
S29PL127J (128Mbit)
ST
M29F200T (2Mbit)
M29F200B (2Mbit)
M29F400T (4Mbit)
M29F400B (4Mbit)
M29F080A (8Mbit)
M29F800T (8Mbit)
M29F800B (8Mbit)
M29W400DT (4Mbit)
M29W400DB (4Mbit)
M29W800AT (8Mbit)
M29W800AB (8Mbit)
M29W800DT (8Mbit)
M29W800DB (8Mbit)
M29W160ET (16Mbit)
M29W160EB (16Mbit)
M29D323DT (32Mbit)
M29D323DB (32Mbit)
M29W320DT (32Mbit)
M29W320DB (32Mbit)
M29W320ET (32Mbit)
M29W320EB (32Mbit)
M29W640GH (64Mbit)
M29W640GL (64Mbit)
M29W640GT (64Mbit)
M29W640GB (64Mbit)
M29W128GH (128Mbit)
M29W128GL (128Mbit)
M28W160CT (16Mbit)
M28W160CB (16Mbit)
M28W320FCT (32Mbit)
M28W320FCB (32Mbit)
M28W320BT (32Mbit)
M28W320BB (32Mbit)
M28W640ECT (64Mbit)
M28W640ECB (64Mbit)
M28W320FSU (32Mbit)
M28W640FSU (64Mbit)
M58LW064D (64Mbit)
Micron
M29F200FT (2Mbit)
M29F200FB (2Mbit)
M29F400FT (4Mbit)
M29F400FB (4Mbit)
M29F800FT (8Mbit)
M29F800FB (8Mbit)
M29F160FT (16Mbit)
M29F160FB (16Mbit)
M29W160ET (16Mbit)
M29W160EB (16Mbit)
M29W320DT (32Mbit)
M29W320DB (32Mbit)
M29W640GH (64Mbit)
M29W640GL (64Mbit)
M29W640GT (64Mbit)
M29W640GB (64Mbit)
M29W128GH (128Mbit)
M29W128GL (128Mbit)
M29W256GH (256Mbit)
M29W256GL (256Mbit)
M29W512G (512Mbit)
MT28EW128 (128Mbit)
MT28EW256 (256Mbit)
MT28EW512 (512Mbit)
MT28EW01G (1Gbit)
MT28FW02G (2Gbit)
Sharp
LHF00L15 (32Mbit)
LH28F160S3 (16Mbit)
LH28F320S3 (32Mbit)
LH28F160BJE (16Mbit)
LH28F320BJE (32Mbit)
LH28F008SCT (8Mbit)
LH28F016SCT (16Mbit)
Toshiba
TC58FVT800 (8Mbit)
TC58FVB800 (8Mbit)
TC58FVT160 (16Mbit)
TC58FVB160 (16Mbit)
TC58FVT321 (32Mbit)
TC58FVB321 (32Mbit)
TC58FVM5T2A (32Mbit)
TC58FVM5B2A (32Mbit)
TC58FVM5T3A (32Mbit)
TC58FVM5B3A (32Mbit)
TC58FYM5T2A (32Mbit)
TC58FYM5B2A (32Mbit)
TC58FYM5T3A (32Mbit)
TC58FYM5B3A (32Mbit)
TC58FVM6T2A (64Mbit)
TC58FVM6B2A (64Mbit)
TC58FVM6T5B (64Mbit)
TC58FVM6B5B (64Mbit)
TC58FYM6T2A (64Mbit)
TC58FYM6B2A (64Mbit)
TC58FVM7T2A (128Mbit)
TC58FVM7B2A (128Mbit)
TC58FYM7T2A (128Mbit)
TC58FYM7B2A (128Mbit)
Samsung
K8P1615UQB (16Mbit)
K8D1716UT (16Mbit)
K8D1716UB (16Mbit)
K8D3216UT (32Mbit)
K8D3216UB (32Mbit)
K8P3215UQB (32Mbit)
K8D6316UT (64Mbit)
K8D6316UB (64Mbit)
K8P6415UQB (64Mbit)
K8P2716UZC (128Mbit)
K8Q2815UQB (128Mbit)
K8P5516UZB (256Mbit)
K8P5615UQA (256Mbit)
Hynix
HY29F040 (4Mbit)
HY29F080 (8Mbit)
HY29F400T (4Mbit)
HY29F400B (4Mbit)
HY29F800T (8Mbit)
HY29F800B (8Mbit)
HY29LV400T (4Mbit)
HY29LV400B (4Mbit)
HY29LV800T (8Mbit)
HY29LV800B (8Mbit)
HY29LV160T (16Mbit)
HY29LV160B (16Mbit)
HY29LV320T (32Mbit)
HY29LV320B (32Mbit)
Fujitsu
MBM29F400TA (4Mbit)
MBM29F400BA (4Mbit)
MBM29F800TA (8Mbit)
MBM29F800BA (8Mbit)
MBM29LV200TC (2Mbit)
MBM29LV200BC (2Mbit)
MBM29LV400TC (4Mbit)
MBM29LV400BC (4Mbit)
MBM29LV800TA (8Mbit)
MBM29LV800BA (8Mbit)
MBM29LV160T (16Mbit)
MBM29LV160B (16Mbit)
MBM29LV320TE (32Mbit)
MBM29LV320BE (32Mbit)
MBM29DL32XTD (32Mbit)
MBM29DL32XBD (32Mbit)
EON
EN29LV400AT (4Mbit)
EN29LV400AB (4Mbit)
EN29LV800AT (8Mbit)
EN29LV800AB (8Mbit)
EN29LV160AT (16Mbit)
EN29LV160AB (16Mbit)
EN29LV320AT (32Mbit)
EN29LV320AB (32Mbit)
EN29LV640 (64Mbit)

Compatible with these SPI NOR Flash devices:

Atmel / Adesto
AT45DB641E (64Mbit)
AT45DB642D (64Mbit)
AT45DB321E (32Mbit)
AT45DB321D (32Mbit)
AT45DB161E (16Mbit)
AT45DB161D (16Mbit)
AT45DB081E (8Mbit)
AT45DB081D (8Mbit)
AT45DB041E (4Mbit)
AT45DB041D (4Mbit)
AT45DB021E (2Mbit)
AT45DB021D (2Mbit)
AT45DB011D (1Mbit)
AT25DF641 (64Mbit)
AT25DF321S (32Mbit)
AT25DF321 (32Mbit)
AT25DF161 (16Mbit)
AT25DF081 (8Mbit)
AT25DF041 (4Mbit)
AT25DF021 (2Mbit)
AT26DF321 (32Mbit)
AT26DF161 (16Mbit)
AT26DF161A (16Mbit)
AT26DF081A (8Mbit)
AT25SF321 (32Mbit)
AT25SF161 (16Mbit)
AT25SF081 (8Mbit)
AT25SF041 (4Mbit)
AT25XV041 (4Mbit)
AT25XV021 (2Mbit)
AT25SL128A (128Mbit)
AT25SL641 (64Mbit)
AT25SL321 (32Mbit)
Spansion / Cypress
S70FL01GS (1Gbit)
S25FL512S (512Mbit)
S25FL256S (256Mbit)
S25FL256S (256Mbit)
FL127S/FL128S (128Mbit)
S25FL128S (128Mbit)
S25FL127S (128Mbit)
S25FS256S (256Mbit)
S25FS128S (128Mbit)
S25FS064S (64Mbit)
S25FS256S (256Mbit)
S25FS128S (128Mbit)
S25FS064S (64Mbit)
S25FL256L (256Mbit)
S25FL128L (128Mbit)
S25FL064L (64Mbit)
S70FL256P (256Mbit)
S25FL128P (128Mbit)
S25FL128P (128Mbit)
S25FL129P (128Mbit)
S25FL129P (128Mbit)
S25FL064 (64Mbit)
S25FL032 (32Mbit)
S25FL016A (16Mbit)
S25FL008A (8Mbit)
S25FL004A (4Mbit)
S25FL040A (4Mbit)
S25FL164K (64Mbit)
S25FL132K (32Mbit)
S25FL216K (16Mbit)
S25FL116K (16Mbit)
S25FL208K (8Mbit)
S25FL204K (4Mbit)
S25HS256T (256Mbit)
S25HS512T (512Mbit)
S25HS01GT (1Gbit)
S25HL256T (256Mbit)
S25HL512T (512Mbit)
S25HL01GT (1Gbit)
S26HS256T (256Mbit)
S26HS512T (512Mbit)
S26HS01GT (1Gbit)
S26HL256T (256Mbit)
S26HL512T (512Mbit)
S26HL01GT (1Gbit)
Micron
MT25QL02GC (2Gbit)
N25Q00AA (1Gbit)
N25Q512A (512Mbit)
N25Q256A (256Mbit)
NP5Q128A (128Mbit)
N25Q128 (128Mbit)
N25Q064 (64Mbit)
N25Q032 (32Mbit)
N25Q016 (16Mbit)
N25Q008 (8Mbit)
N25Q00AA (1Gbit)
N25Q512A (512Mbit)
N25Q256A (256Mbit)
N25Q128A (128Mbit)
N25Q064A (64Mbit)
N25Q032 (16Mbit)
N25Q016 (16Mbit)
N25Q008 (8Mbit)
M25P128 (128Mbit)
M25P64 (64Mbit)
M25PX32 (32Mbit)
M25P32 (32Mbit)
M25PX16 (16Mbit)
M25PX16 (16Mbit)
M25P16 (16Mbit)
M25P80 (8Mbit)
M25PX80 (8Mbit)
M25P40 (4Mbit)
M25P20 (2Mbit)
M25P10 (1Mbit)
M25P05 (512Kbit)
M25PX64 (64Mbit)
M25PX32 (32Mbit)
M25PX16 (16Mbit)
M25PE16 (16Mbit)
M25PE80 (8Mbit)
M25PE40 (4Mbit)
M25PE20 (2Mbit)
M25PE10 (1Mbit)
M45PE16 (16Mbit)
M45PE80 (8Mbit)
M45PE40 (4Mbit)
M45PE20 (2Mbit)
M45PE10 (1Mbit)
Winbond
W25M512JV (512Mbit)
W25M512JW (512Mbit)
W25H02NW (2Gbit)
W25H01NW (1Gbit)
W25H512NW (512Mbit)
W25H02JV (2Gbit)
W25H01JV (1Gbit)
W25H512JV (512Mbit)
W25Q02NW (2Gbit)
W25Q01NW (1Gbit)
W25Q512NW (512Mbit)
W25Q01NW (1Gbit)
W25Q512NW (512Mbit)
W25Q256FV (256Mbit)
W25Q02JV (2Gbit)
W25Q01JV (1Gbit)
W25Q512JV (512Mbit)
W25Q256JV (256Mbit)
W25Q128JV (128Mbit)
W25Q64JV (64Mbit)
W25Q32JV (32Mbit)
W25Q01 (256Mbit)
W25Q512 (256Mbit)
W25Q256 (256Mbit)
W25Q128 (128Mbit)
W25Q64 (64Mbit)
W25Q32 (32Mbit)
W25Q16 (16Mbit)
W25Q16JV-DTR (16Mbit)
W25Q80 (8Mbit)
W25Q40 (4Mbit)
W25X64 (64Mbit)
W25X32 (32Mbit)
W25X16 (16Mbit)
W25X80 (8Mbit)
W25X40 (4Mbit)
W25X20 (2Mbit)
W25X10 (2Mbit)
W25X05 (512Kbit)
W25M121AV (128Mbit/1Gbit)
W25Q256FW (256Mbit)
W25Q128FW (128Mbit)
W25Q64FW (64Mbit)
W25Q32FW (32Mbit)
W25Q16FW (16Mbit)
W25Q80EW (8Mbit)
W25Q40EW (4Mbit)
W25Q20EW (2Mbit)
W25Q80BW (8Mbit)
W25Q40BW (4Mbit)
W25Q20BW (2Mbit)
MXIC
MX66L1G45G (1Gbit)
MX25L51245G (512Mbit)
MX25L25655E (256Mbit)
MX25L256 (256Mbit)
MX25L12855E (128Mbit)
MX25L128 (128Mbit)
MX25L6455E (64Mbit)
MX25L640 (64Mbit)
MX25L320 (32Mbit)
MX25L3205D (32Mbit)
MX25L323 (32Mbit)
MX25L3255E (32Mbit)
MX25L1633E (16Mbit)
MX25L160 (16Mbit)
MX25L80 (8Mbit)
MX25L40 (4Mbit)
MX25L20 (2Mbit)
MX25L10 (1Mbit)
MX25L512 (512Kbit)
MX25L1021E (1Mbit)
MX25L5121E (512Kbit)
MX66L51235F (512Mbit)
MX25V8035 (8Mbit)
MX25V4035 (4Mbit)
MX25V8035F (8Mbit)
MX25R6435 (64Mbit)
MX25R3235F (32Mbit)
MX25R8035F (8Mbit)
MX25L3235E (32Mbit)
MX25L2005 (32Mbit)
MX25L2006E (32Mbit)
MX25L2026E (32Mbit)
MX25L51245G (32Mbit)
MX25UM51345G (512Mbit)
MX25U25645G (256Mbit)
MX25U12873F (128Mbit)
MX25U643 (64Mbit)
MX25U323 (32Mbit)
MX25U3235F (32Mbit)
MX25U1635E (16Mbit)
MX25U803 (8Mbit)
EON
EN25Q128 (128Mbit)
EN25Q64 (64Mbit)
EN25Q32 (32Mbit)
EN25Q16 (16Mbit)
EN25Q80 (8Mbit)
EN25Q40 (4Mbit)
EN25QH128 (128Mbit)
EN25QH64 (64Mbit)
EN25QH32 (32Mbit)
EN25QH16 (16Mbit)
EN25QH80 (8Mbit)
EN25P64 (64Mbit)
EN25P32 (32Mbit)
EN25P16 (16Mbit)
EN25F32 (32Mbit)
EN25F16 (16Mbit)
EN25F80 (8Mbit)
EN25F40 (4Mbit)
EN25F20 (2Mbit)
EN25T32 (32Mbit)
EN25T16 (16Mbit)
EN25T80 (8Mbit)
EN25T40 (4Mbit)
EN25T20 (2Mbit)
EN25F10 (1Mbit)
EN25S64 (64Mbit)
EN25S32 (32Mbit)
EN25S16 (16Mbit)
EN25S80 (8Mbit)
EN25S40 (4Mbit)
EN25S20 (2Mbit)
EN25S10 (1Mbit)
Microchip
SST26VF064 (64Mbit)
SST26VF064B (64Mbit)
SST26VF032 (32Mbit)
SST26VF032 (32Mbit)
SST26VF032B (32Mbit)
SST26VF016 (16Mbit)
SST26VF016 (16Mbit)
SST26VF016B (16Mbit)
SST25VF128B (128Mbit)
SST25VF064C (64Mbit)
SST25VF032 (32Mbit)
SST25VF032B (32Mbit)
SST25VF016B (16Mbit)
SST25VF080 (8Mbit)
SST25VF080B (8Mbit)
SST25VF040B (4Mbit)
SST25VF020 (2Mbit)
SST25VF020A (2Mbit)
SST25VF010 (1Mbit)
SST25VF010A (1Mbit)
SST25VF512 (512Kbit)
SST25PF040C (4Mbit)
SST25LF020A (2Mbit)
SST26WF064 (64Mbit)
SST26WF032 (32Mbit)
SST26WF016 (16Mbit)
SST26WF080 (8Mbit)
SST26WF040 (4Mbit)
SST25WF080B (8Mbit)
SST25WF040 (4Mbit)
SST25WF020A (2Mbit)
SST25WF040B (4Mbit)
SST25WF020 (2Mbit)
SST25WF010 (1Mbit)
SST25WF512 (512Kbit)
25AA160A (16Kbit)
25AA160B (16Kbit)
25LC1024 (1Mbit)
25XX1024 (1Mbit)
PMC
PM25LV016B (16Mbit)
PM25LV080B (8Mbit)
PM25LV040 (4Mbit)
PM25LV020 (2Mbit)
PM25LV010 (1Mbit)
PM25LV512 (512Kbit)
PM25LD020 (2Mbit)
PM25LD010 (1Mbit)
PM25LD512 (512Kbit)
AMIC
A25LQ64 (64Mbit)
A25LQ32A (32Mbit)
A25L032 (32Mbit)
A25L016 (16Mbit)
A25LQ16 (16Mbit)
A25L080 (8Mbit)
A25L040 (4Mbit)
A25L020 (2Mbit)
A25L010 (1Mbit)
A25L512 (512Kbit)
A25LS512A (512Kbit)
Dosilicon
FM25Q128 (32Mbit)
FM25Q64A (32Mbit)
FM25Q32A (32Mbit)
FM25Q16A (16Mbit)
FM25Q08 (8Mbit)
FM25Q04 (4Mbit)
FM25Q02 (2Mbit)
FM25M04A (4Mbit)
FM25M08A (8Mbit)
FM25M16A (16Mbit)
FM25M32A (32Mbit)
FM25M64A (64Mbit)
FM25M4AA (4Mbit)
DS25M4BA (4Mbit)
GigaDevice
GD25Q256 (256Mbit)
GD25Q128 (128Mbit)
GD25Q64 (64Mbit)
GD25Q32 (32Mbit)
GD25Q16 (16Mbit)
GD25Q80 (8Mbit)
GD25Q40 (4Mbit)
GD25Q20 (2Mbit)
GD25Q10 (1Mbit)
GD25Q512 (512Kbit)
GD25VQ16C (16Mbit)
GD25VQ80C (8Mbit)
GD25VQ41B (4Mbit)
GD25VQ21B (2Mbit)
MD25D16SIG (16Mbit)
GD25LQ128 (128Mbit)
GD25LQ64 (64Mbit)
GD25LQ32 (32Mbit)
GD25LQ16 (16Mbit)
GD25LQ80 (8Mbit)
GD25LQ40 (4Mbit)
GD25LQ20 (2Mbit)
GD25LQ10 (1Mbit)
ISSI
IS25LP512 (512Mbit)
IS25LP256 (256Mbit)
IS25LP128 (128Mbit)
IS25LP064 (64Mbit)
IS25LP032 (32Mbit)
IS25LP016 (16Mbit)
IS25LP080 (8Mbit)
IS25CD020 (2Mbit)
IS25CD010 (1Mbit)
IS25CD512 (512Kbit)
IS25CD025 (256Kbit)
IS25CQ032 (32Mbit)
IS25LQ032 (32Mbit)
IS25LQ016 (16Mbit)
IS25LQ080 (8Mbit)
IS25LQ040B (4Mbit)
IS25LQ040 (4Mbit)
IS25LQ020 (2Mbit)
IS25LQ020 (2Mbit)
IS25LQ010 (1Mbit)
IS25LQ512 (512Kbit)
IS25LQ025 (256Kbit)
IS25LD040 (4Mbit)
IS25WP256 (256Mbit)
IS25WP128 (128Mbit)
IS25WP064 (64Mbit)
IS25WP032 (32Mbit)
IS25WP016 (16Mbit)
IS25WP080 (8Mbit)
IS25WP040 (4Mbit)
IS25WP020 (2Mbit)
IS25WQ040 (4Mbit)
IS25WQ020 (2Mbit)
IS25WD040 (4Mbit)
IS25WD020 (2Mbit)
ESMT
F25L64QA (32Mbit)
F25L32QA (32Mbit)
F25L16QA (32Mbit)
F25L14QA (32Mbit)
F25L08 (8Mbit)
F25L08 (8Mbit)
F25L04 (4Mbit)
F25L04 (4Mbit)
F25L64PA (16Mbit)
F25L32PA (16Mbit)
F25L16PA (16Mbit)
F25L08PA (8Mbit)
F25L04PA (4Mbit)
F25L02PA (2Mbit)
Sanyo
LE25FU406B (4Mbit)
LE25FW406A (4Mbit)
Berg Micro
BG25Q32A (32Mbit)
XMC
XM25QH32B (32Mbit)
XM25QH64A (64Mbit)
XM25QH128A (128Mbit)
BOYAMICRO
BY25D16 (16Mbit)
BY25Q32 (32Mbit)
BY25Q64 (64Mbit)
BY25Q128A (128Mbit)
PUYA
P25Q32H (32Mbit)
P25Q16H (16Mbit)
P25Q80H (8Mbit)
P25D16H (16Mbit)
P25D80H (8Mbit)
P25D40H (4Mbit)
P25D20H (2Mbit)
P25D10H (1Mbit)
P25D05H (512Kbit)
Atmel
AT25128B (128Kbit)
AT25256B (256Kbit)
AT25512 (512Kbit)
AT25010A (1Kbit)
AT25020A (2Kbit)
AT25040A (4Kbit)
AT25080 (8Kbit)
AT25160 (16Kbit)
AT25320 (32Kbit)
AT25640 (64Kbit)
ST
M95010 (1Kbit)
M95020 (2Kbit)
M95040 (4Kbit)
M95080 (8Kbit)
M95160 (16Kbit)
M95320 (32Kbit)
M95640 (64Kbit)
M95128 (128Kbit)
M95256 (256Kbit)
M95512 (512Kbit)
M95M01 (1Mbit)
M95M02 (2Mbit)
XICOR
X25650 (64Kbit)

Compatible with these NAND Flash devices:

ST
NAND128W3A (128Mbit)
NAND256R3A (256Mbit)
NAND256W3A (256Mbit)
NAND256R4A (256Mbit)
NAND256W4A (256Mbit)
NAND512R3A (512Mbit)
NAND512W3A (512Mbit)
NAND512R4A (512Mbit)
NAND512W4A (512Mbit)
NAND01GR3A (1Gbit)
NAND01GW3A (1Gbit)
NAND01GR4A (1Gbit)
NAND01GW4A (1Gbit)
NAND01GR3B (1Gbit)
NAND01GW3B (1Gbit)
NAND01GR4B (1Gbit)
NAND01GW4B (1Gbit)
NAND02GR3B (2Gbit)
NAND02GW3B (2Gbit)
NAND02GR4B (2Gbit)
NAND02GW4B (2Gbit)
NAND04GW3B (4Gbit)
NAND04GW3B (4Gbit)
Micron
MT29F1G08ABAEA (1Gbit)
MT29F1G08ABBEA (1Gbit)
MT29F1G08ABADAWP (1Gbit)
MT29F2G08AAB (2Gbit)
MT29F2G08ABBFA (2Gbit)
MT29F2G08ABAFA (2Gbit)
MT29F2G08ABBEA (2Gbit)
MT29F2G16ABBEA (2Gbit)
MT29F2G08ABAEA (2Gbit)
MT29F2G16ABAEA (2Gbit)
MT29F2G08ABBEAH4 (2Gbit)
MT29F2G16ABBEAH4 (2Gbit)
MT29F2G08ABAEAH4 (2Gbit)
MT29F2G16ABAEAH4 (2Gbit)
MT29F4G08BAB (4Gbit)
MT29F4G08AAA (4Gbit)
MT29F4G08BABWP (4Gbit)
MT29F4G08ABA (4Gbit)
MT29F4G08ABADAWP (4Gbit)
MT29F4G08ABAEA (4Gbit)
MT29F4G08ABAEA (4Gbit)
MT29F4G08ABAEA (4Gbit)
MT29F4G16ABADA (4Gbit)
MT29F8G08DAA (4Gbit)
Toshiba
TC58DVM92A5TAI0 (512Mbit)
TC58DVM92A5TAI0 (512Mbit)
TC58NVG3D4CTGI0 (1Gbit)
TC58BVG0S3HTA00 (1Gbit)
TC58DVG02D5TA00 (1Gbit)
TC58NVG0S3ETA00 (1Gbit)
TC58NVG0S3HTA00 (1Gbit)
TC58NVG0S3HTAI0 (1Gbit)
TC58BVG0S3HTAI0 (1Gbit)
TC58NVG1S3HTA00 (2Gbit)
TC58BVG1S3HTA00 (2Gbit)
TC58NVG1S3HTAI0 (2Gbit)
TC58NVG2S0HTA00 (4Gbit)
TC58NVG2S3ETA00 (4Gbit)
TC58NVG2S0HTAI0 (4Gbit)
TH58NVG2S3HTA00 (4Gbit)
TC58BVG2S0HTAI0 (4Gbit)
TC58NVG2S0HBAI4 (4Gbit)
Winbond
W29N01GW (1Gbit)
W29N01GV (1Gbit)
W29N01HV (1Gbit)
W29N02GV (2Gbit)
W29N04GV (4Gbit)
W29N04GZ (4Gbit)
W29N04GW (4Gbit)
MXIC
MX30LF1208AA (512Mbit)
MX30LF1GE8AB (1Gbit)
MX30UF1G18AC (1Gbit)
MX30LF1G18AC (1Gbit)
MX30LF1G08AA (1Gbit)
MX30LF2G18AC (2Gbit)
MX30UF2G18AC (2Gbit)
MX30LF2G28AB (2Gbit)
MX30LF2GE8AB (2Gbit)
MX30UF2G18AB (2Gbit)
MX30UF2G28AB (1Gbit)
MX30LF4G18AC (4Gbit)
MX30UF4G18AB (4Gbit)
MX30LF4G28AB (4Gbit)
MX30LF4GE8AB (4Gbit)
MX30UF4G28AB (2Gbit)
Samsung
K9F2808U0C (128Mbit)
K9K2G08U0M (2Gbit)
K9K1G08U0M (1Gbit)
K9F1208U0C (512Mbit)
K9F5608U0D (256Mbit)
K9F1G08U0A (1Gbit)
K9F1G08U0B (1Gbit)
K9F1G08U0C (1Gbit)
K9F1G08U0D (1Gbit)
K9F1G08U0C (1Gbit)
K9F1G08B0C (1Gbit)
K9F1G08U0E (1Gbit)
K9F2G08X0 (2Gbit)
K9F2G08U0C (2Gbit)
K9F2G08U0M (4Gbit)
K9W8G08U1M (4Gbit)
K9F4G08U0A (4Gbit)
K9F4G08U0B (4Gbit)
Hynix
HY27US08281A (128Mbit)
HY27US08561A (256Mbit)
HY27US16561A (256Mbit)
HY27SS08561A (256Mbit)
HY27SS16561A (256Mbit)
HY27US08121B (512Mbit)
HY27UF081G2A (1Gbit)
HY27UF161G2A (1Gbit)
H27U1G8F2B (1Gbit)
H27U1G8F2CTR (1Gbit)
HY27UF081G2M (1Gbit)
HY27US081G1M (1Gbit)
HY27SF081G2M (1Gbit)
HY27UF082G2B (2Gbit)
HY27UF082G2A (2Gbit)
H27U2G8F2C (2Gbit)
H27U2G8F2C (2Gbit)
H27U2G6F2C (2Gbit)
H27S2G8F2C (2Gbit)
H27S2G6F2C (2Gbit)
H27U4G8F2D (4Gbit)
H27U4G6F2D (4Gbit)
H27S4G8F2D (4Gbit)
H27S4G6F2D (4Gbit)
HY27UG084G2M (4Gbit)
HY27UG084GDM (4Gbit)
HY27UG164G2M (4Gbit)
HY27UF084G2M (4Gbit)
Spansion / Cypress
S34ML01G1 (1Gbit)
S34ML02G1 (2Gbit)
S34ML04G1 (4Gbit)
S34ML01G2 (1Gbit)
S34ML02G2 (2Gbit)
S34ML04G2 (4Gbit)
S34ML01G2 (1Gbit)
S34ML02G2 (2Gbit)
S34ML04G2 (4Gbit)
S34ML04G3 (4Gbit)
S34MS01G200 (4Gbit)
S34MS02G200 (4Gbit)
S34MS04G200 (4Gbit)
S34MS01G204 (4Gbit)
S34MS02G204 (4Gbit)
S34MS04G204 (4Gbit)
Dosilicon
FMND1G08U3D (1Gbit)
FMND1G16U3D (1Gbit)
FMND1G08S3D (1Gbit)
FMND1G16S3D (1Gbit)
FMND2G08U3D (2Gbit)
FMND2G16U3D (2Gbit)
FMND2G08S3D (2Gbit)
FMND2G16S3D (2Gbit)
FMND4G08U3B (4Gbit)
FMND4G16U3B (4Gbit)
FMND4G08S3B (4Gbit)
FMND4G16S3B (4Gbit)
FMND4G08U3C (4Gbit)
FMND4G16U3C (4Gbit)
FMND4G08S3C (4Gbit)
FMND4G16S3C (4Gbit)
FMND4G08U3F (4Gbit)
FMND4G16U3F (4Gbit)
FMND4G08S3F (4Gbit)
FMND4G16S3F (4Gbit)
FORESEE
FS33ND01GS1 (1Gbit)
Zentel
A5U1GA31ATS (1Gbit)
ESMT
F59L1G81MA (1Gbit)
F59L1G81LA (1Gbit)
F59L2G81A (2Gbit)

Compatible with these SPI NAND Flash devices:

Micron
MT29F1G01ABA (1Gbit)
MT29F1G01ABB (1Gbit)
MT29F2G01AAA (2Gbit)
MT29F2G01ABA (2Gbit)
MT29F2G01ABB (2Gbit)
MT29F4G01ADA (4Gbit)
MT29F4G01AAA (4Gbit)
GigaDevice
GD5F1GQ4UB (1Gbit)
GD5F1GQ4RB (1Gbit)
GD5F2GQ4UB (2Gbit)
GD5F2GQ4RB (2Gbit)
GD5F4GQ4UA (4Gbit)
GD5F4GQ4UB (4Gbit)
GD5F4GQ4RB (4Gbit)
GD5F1GQ4UC (1Gbit)
GD5F1GQ4RC (1Gbit)
GD5F2GQ4UC (2Gbit)
GD5F2GQ4RC (2Gbit)
GD5F4GQ4UC (4Gbit)
GD5F4GQ4RC (4Gbit)
Winbond
W25N512GV (512Mbit)
W25N01GV (1Gbit)
W25M02GV (2Gbit)
W25N02KV (2Gbit)
W25N512GW (512Mbit)
W25N01GW (1Gbit)
W25M02GW (2Gbit)
Toshiba
TC58CVG0S3 (1Gbit)
TC58CVG1S3 (2Gbit)
TC58CVG2S0 (4Gbit)
TC58CYG0S3 (1Gbit)
TC58CYG1S3 (2Gbit)
TC58CYG2S0 (4Gbit)
Kioxia
TC58CVG0S3HRAIJ (1Gbit)
TC58CVG1S3HRAIJ (2Gbit)
TC58CVG2S0HRAIJ (4Gbit)
TH58CVG3S0HRAIJ (8Gbit)
TC58CYG0S3HRAIJ (1Gbit)
TC58CYG1S3HRAIJ (2Gbit)
TC58CYG2S0HRAIJ (4Gbit)
TH58CYG3S0HRAIJ (8Gbit)
XTX
PN26Q01AWSIUG (1Gbit)
PN26Q02AWSIUG (2Gbit)
PN26G01AWSIUG (1Gbit)
XT26G01AWSEGA (1Gbit)
XT26G02AWSEGA (2Gbit)
XT26G01BWSEGA (1Gbit)
XT26G02BWSIGA (2Gbit)
MXIC
MX35LF1GE4AB (1Gbit)
MX35LF2GE4AB (2Gbit)
ISSI
IS37/38SML01G1 (1Gbit)
ESMT
F50L1G41A (1Gbit)
FMSH
FM25G01 (1Gbit)
FM25G02 (2Gbit)

Compatible with these parallel FWH Flash devices:

Atmel
AT49LH002 (2Mbit)
AT49LH004 (4Mbit)
Winbond
W39V040FA (4Mbit)
W39V080FA (8Mbit)
Microchip
SST49LF002A (2Mbit)
SST49LF003A (3Mbit)
SST49LF004A (4Mbit)
SST49LF008A (8Mbit)
SST49LF080A (8Mbit)
SST49LF016C (16Mbit)
ISSI
PM49FL002 (2Mbit)
PM49FL004 (4Mbit)
PM49FL008 (8Mbit)

Compatible with these parallel OTP EEPROM devices:

ATMEL
AT27C010 (1Mbit)
AT27C020 (2Mbit)
AT27C040 (4Mbit)
AT27C516 (512Kbit)
AT27C1024 (1Mbit)
AT27C2048 (2Mbit)
AT27C4096 (4Mbit)
ST
M27C1024 (1Mbit)
M27C256B (256Kbit)
M27C512 (512Kbit)
M27C1001 (1Mbit)
M27C2001 (2Mbit)
M27C4001 (4Mbit)
M27C801 (8Mbit)
M27C160 (16Mbit)
M27C322 (32Mbit)
Copyright 2021 - All content is property of Embedded Computers LLC
