Parallel Flash Adapters (NOR and NAND devices)



These sockets and adapters are compatible with FlashcatUSB XPORT or with the Extension IO port (serial to parallel) board. Please note that Mach1 uses a different adapter system. Schematics are provided for most adapters if you are adventuous and want to make your own.







FlashcatUSB Extension Port

This board adds the ability for FlashcatUSB to interface with parallel NOR and NAND memory devices.



  • Compatible with FlashcatUSB PCB 2.x, PCB 3.x, PCB 4.x

  • Supports both NAND (x8) and NOR (x8 / x16) Flash types

  • Supports 32 address bits (x8) and 24 address bits (x16)

  • Address and data I/O: (A0 to A23) and (DQ0 to DQ15)

  • Hardware control pins: 3 (CE, OE, WE)

  • Reads data up to 200KB/s, writes data up to 175KB/s

$10.00






Flash Memory Socket Adapters



  Socket Type Information Price
PLCC-32
(Type-A)
11.5mm by 14mm, 1.27mm pitch. Supports typical Series 28 and 29 devices. Rev. B includes VPP switch for legacy devices that need 12v for erasing or programming.

$12.00
DIP-32 Supports 32-pin 28 and 29 series and 3.3v or 5v. VPP switch with 12v option supported.


$14.00
TSOP-40
(Type A)
Supports devices such as AM29F080B and AM29F016D.


$25.00

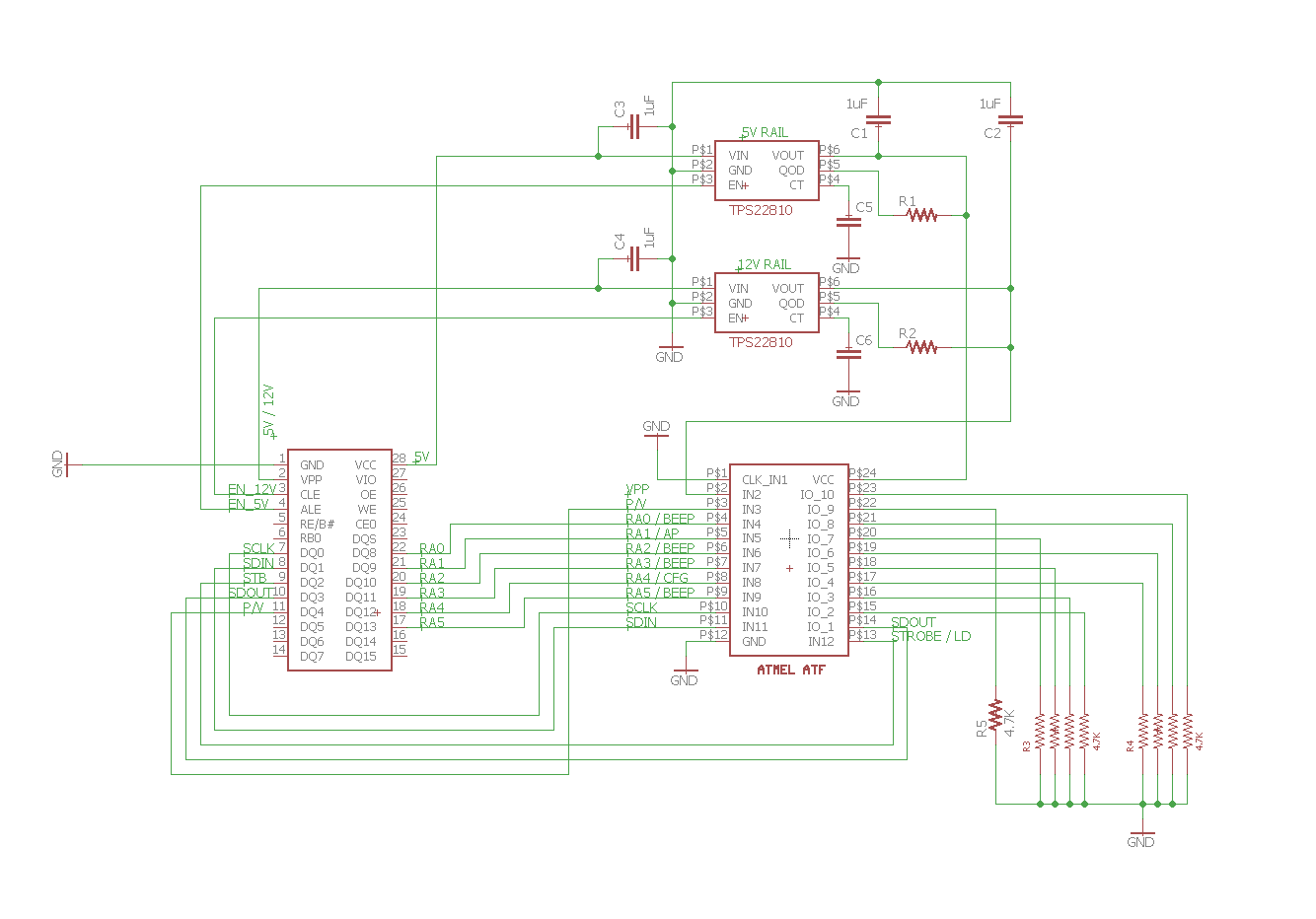

SO-44 Fits standard SOP-44 (500 mil) devices. On board voltage circuit allows 3.3v, 5v, and 12v for VPP. Supports 28 and 29 series and 16-mbit and 32-mbit devices.

$26.00

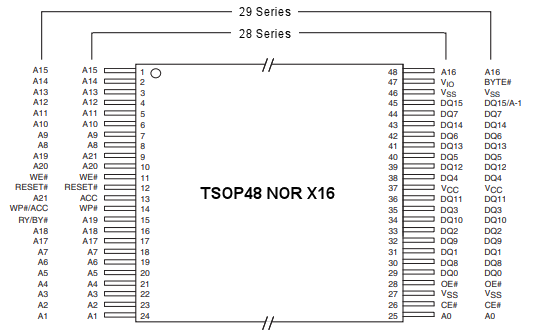

TSOP-48
(Type A)
Supports standard NOR Flash devices.
Jumper settings:
28 Series: [XX]X [XX]X [XX]X
29 Series: X[XX] X[XX] X[XX]

$18.00
TSOP-48
(Type B)
Supports X8 NAND devices. For X16 support, only Mach1 is supported.

See list below for supported devices.

$18.00
TSOP-56
(Type A)
Standard size: 14mm by 20mm, pitch 0.5mm

Supports newer 29 series Flash devices and densities up to 512Mb.

$30.00
TSOP-56
(Type B)
Supports older 28 Series Flash devices.

See list below for compatibility list.

$30.00
  EXT-ADP A complete package of all eight of the above socket adapters and one Extension Port.
$150.00


Special Order Sockets
Package Information Price
PLCC-32
(Type-B)
Supports older devices that use a non-standard pinout.


$12.00
PLCC-32
(FWH)
Supports Firmware Hub memory devices. Only compatible with the XPORT programmer.



$12.00
TSOP-40
(Type B)
Supports device such as AM29LV002, SST39VF016, S29AL032D.


$25.00
SO-32
Supports SO32 flatpack devices, such as AS29F040 and WMF512K8.


$30.00


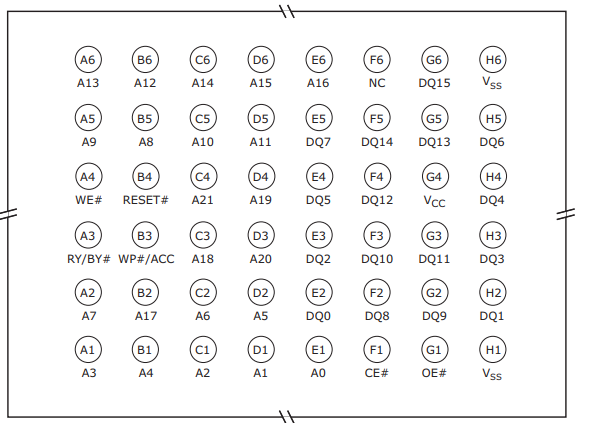

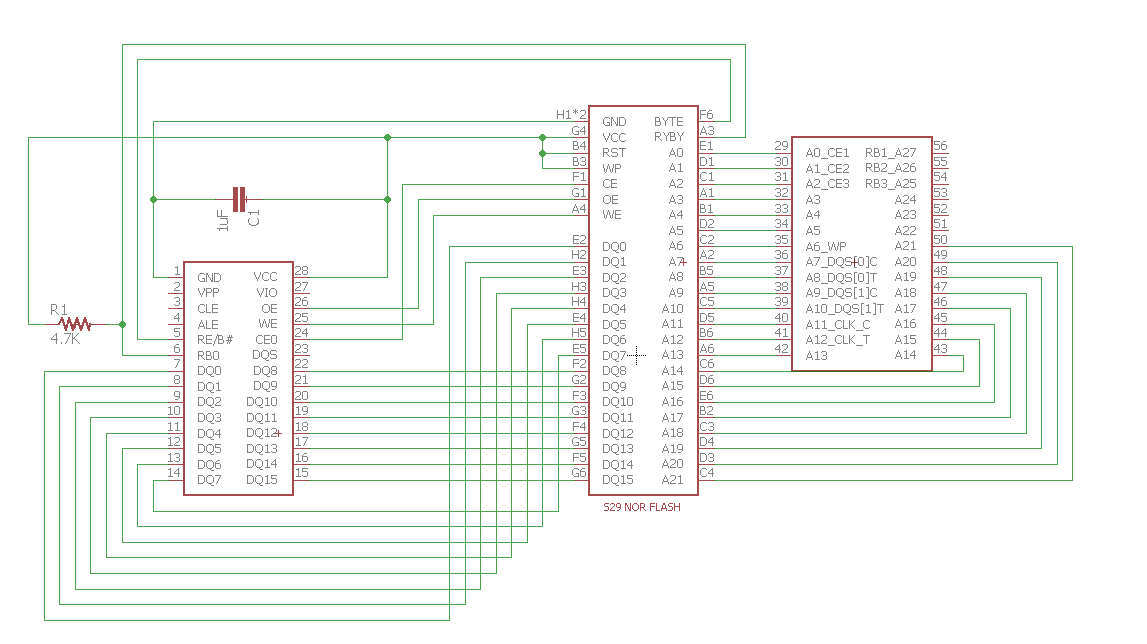

BGA Sockets
Package Information Price

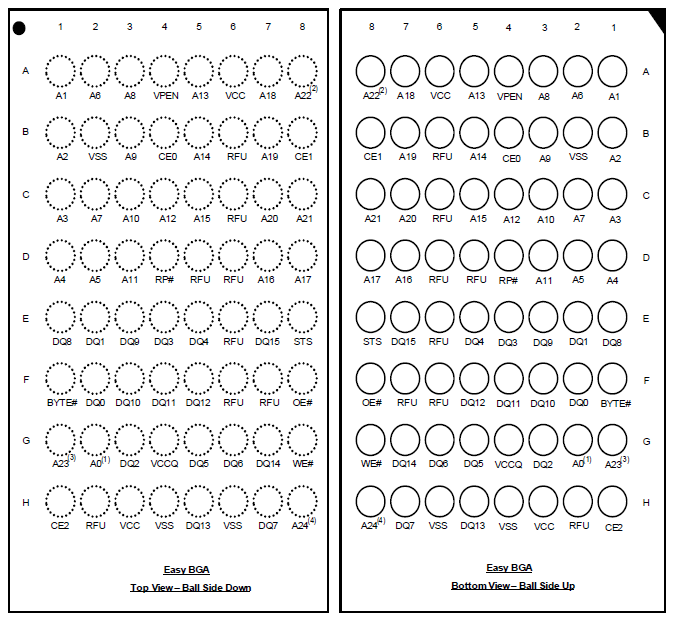

BGA-64
(LAA064)
11x13mm body (29 series NOR)

Availability: in stock (limit 2)
$150.00
BGA-64
(LAE064)
9x9mm body (29 series NOR)

Availability: in stock (limit 2)
$150.00
BGA-63
(VBM063)
11x9mm body (X8 NAND)

Availability: in stock (limit 2)
$150.00

NOR Flashes supported:

Intel
A28F512 (512Kbit)
28F320J3 (32Mbit)
28F640J3 (64Mbit)
28F128J3 (128Mbit)
28F256J3 (256Mbit)
28F320J5 (32Mbit)
28F640J5 (64Mbit)
28F800C3(T) (8Mbit)
28F800C3(B) (8Mbit)
28F160C3(T) (16Mbit)
28F160C3(B) (16Mbit)
28F320C3(T) (32Mbit)
28F320C3(B) (32Mbit)
28F640C3(T) (64Mbit)
28F640C3(B) (64Mbit)
28F400B3(T) (4Mbit)
28F400B3(B) (4Mbit)
28F800B3(T) (8Mbit)
28F800B3(B) (8Mbit)
28F160B3(T) (16Mbit)
28F160B3(B) (16Mbit)
28F320B3(T) (32Mbit)
28F320B3(B) (32Mbit)
28F640B3(T) (64Mbit)
28F640B3(B) (64Mbit)
AMD
AM29F010B (1Mbit)
AM29F040B (4Mbit)
AM29F080B (8Mbit)
AM29F016D (16Mbit)
AM29F032B (32Mbit)
AM29LV200(T) (2Mbit)
AM29LV200(B) (2Mbit)
AM29F200(T) (2Mbit)
AM29F200(B) (2Mbit)
AM29LV400(T) (4Mbit)
AM29LV400(B) (4Mbit)
AM29F400(T) (4Mbit)
AM29F400(B) (4Mbit)
AM29LV800(T) (8Mbit)
AM29LV800(B) (8Mbit)
AM29F800(T) (8Mbit)
AM29F800(B) (8Mbit)
AM29LV160B(T) (16Mbit)
AM29LV160B(B) (16Mbit)
AM29DL322G(T) (32Mbit)
AM29DL322G(B) (32Mbit)
AM29DL323G(T) (32Mbit)
AM29DL323G(B) (32Mbit)
AM29DL324G(T) (32Mbit)
AM29DL324G(B) (32Mbit)
AM29LV320D(T) (32Mbit)
AM29LV320D(B) (32Mbit)
AM29LV320M(T) (32Mbit)
AM29LV320M(B) (32Mbit)
Winbond
W49F002U (2Mbit)
W29EE512 (512Kbit)
W29C010 (1Mbit)
W29C020 (2Mbit)
W29C040 (4Mbit)
W29GL032CT (32Mbit)
W29GL032CB (32Mbit)
SST
39SF512 (512Kbit)
39SF010 (1Mbit)
39SF020 (2Mbit)
39LF010 (1Mbit)
39LF020 (2Mbit)
39LF040 (4Mbit)
39VF800 (8Mbit)
39VF160 (16Mbit)
39VF1681 (16Mbit)
39VF1682 (16Mbit)
39VF1601 (16Mbit)
39VF1602 (16Mbit)
39VF1602C (16Mbit)
39VF3201 (32Mbit)
39VF3202 (32Mbit)
39VF6401 (64Mbit)
39VF6402 (64Mbit)
Atmel
AT29C010A (1Mbit)
AT49F512 (512Kbit)
AT49F010 (1Mbit)
AT49F020 (2Mbit)
AT49F040 (4Mbit)
AT49F040T (4Mbit)
AT49BV/LV16X (16Mbit)
AT49BV/LV16XT (16Mbit)
MXIC
MX29L3211 (32Mbit)
MX29LV040 (4Mbit)
MX29LV400T (4Mbit)
MX29LV400B (4Mbit)
MX29LV800T (8Mbit)
MX29LV800B (8Mbit)
MX29LV160DT (16Mbit)
MX29LV160DB (16Mbit)
MX29LV320T (32Mbit)
MX29LV320B (32Mbit)
MX29LV640ET (64Mbit)
MX29LV640EB (64Mbit)
MX29GL128F (128Mbit)
Spansion / Cypress
S29AL004D(B) (4Mbit)
S29AL004D(T) (4Mbit)
S29AL008J(B) (8Mbit)
S29AL008J(T) (8Mbit)
S29AL016D(B) (16Mbit)
S29AL016D(T) (16Mbit)
S29AL032D (32Mbit)
S29AL032D(B) (32Mbit)
S29AL032D(T) (32Mbit)
S29GL128 (128Mbit)
S29GL256 (256Mbit)
S29GL512 (512Mbit)
S29GL01G (1Gbit)
S29JL064J (64Mbit)
S29GL032M (32Mbit)
S29GL032M (32Mbit)
S29GL032M(B) (32Mbit)
S29GL032M(T) (32Mbit)
S29JL032J(B) (32Mbit)
S29JL032J(T) (32Mbit)
S29JL032J(B) (32Mbit)
S29JL032J(T) (32Mbit)
S29JL032J(B) (32Mbit)
S29JL032J(T) (32Mbit)
S29GL064M (64Mbit)
S29GL064M (64Mbit)
S29GL064M(T) (64Mbit)
S29GL064M(B) (64Mbit)
S29GL064M (64Mbit)
S29GL128M (128Mbit)
S29GL256M (256Mbit)
S29GL128N (128Mbit)
S29GL256N (256Mbit)
S29GL512N (512Mbit)
S29GL128P (128Mbit)
S29GL256P (256Mbit)
S29GL512P (512Mbit)
S29GL01GP (1Gbit)
S29GL128S (128Mbit)
S29GL256S (256Mbit)
S29GL512S (512Mbit)
S29GL01GS (1Gbit)
S29GL512T (512Mbit)
S29GL01GT (1Gbit)
S70GL02G (2Gbit)
ST
M29F200T (2Mbit)
M29F200B (2Mbit)
M29F400T (4Mbit)
M29F400B (4Mbit)
M29F800T (8Mbit)
M29F800B (8Mbit)
M29W800AT (8Mbit)
M29W800AB (8Mbit)
M29W800DT (8Mbit)
M29W800DB (8Mbit)
M28W160CT (16Mbit)
M28W160CB (16Mbit)
M29W160ET (16Mbit)
M29W160EB (16Mbit)
M29D323DT (32Mbit)
M29D323DB (32Mbit)
M28W320FCT (32Mbit)
M28W320FCB (32Mbit)
M28W320BT (32Mbit)
M28W320BB (32Mbit)
M29W320DT (32Mbit)
M29W320DB (32Mbit)
M29W320ET (32Mbit)
M29W320EB (32Mbit)
M28W640ECT (64Mbit)
M28W640ECB (64Mbit)
M58LW064D (64Mbit)
M27C1024 (1Mbit)
M27C256B (256Kbit)
M27C512 (512Kbit)
M27C1001 (1Mbit)
M27C2001 (2Mbit)
M27C4001 (4Mbit)
Micron
M29F200FT (2Mbit)
M29F200FB (2Mbit)
M29F400FT (4Mbit)
M29F400FB (4Mbit)
M29F800FT (8Mbit)
M29F800FB (8Mbit)
M29F160FT (16Mbit)
M29F160FB (16Mbit)
M29W160ET (16Mbit)
M29W160EB (16Mbit)
M29W320DT (32Mbit)
M29W320DB (32Mbit)
M29W640GH (64Mbit)
M29W640GL (64Mbit)
M29W640GT (64Mbit)
M29W640GB (64Mbit)
M29W128GH (128Mbit)
M29W128GL (128Mbit)
M29W256GH (256Mbit)
M29W256GL (256Mbit)
M29W512G (512Mbit)
Sharp
LHF00L15 (32Mbit)
LH28F160S3 (16Mbit)
LH28F320S3 (32Mbit)
LH28F160BJE (16Mbit)
LH28F320BJE (32Mbit)
Toshiba
TC58FVT800 (8Mbit)
TC58FVB800 (8Mbit)
TC58FVT160 (16Mbit)
TC58FVB160 (16Mbit)
TC58FVT321 (32Mbit)
TC58FVB321 (32Mbit)
Samsung
K8P1615UQB (16Mbit)
K8D1716UT (16Mbit)
K8D1716UB (16Mbit)
K8D3216UT (32Mbit)
K8D3216UB (32Mbit)
K8P3215UQB (32Mbit)
K8D6316UT (64Mbit)
K8D6316UB (64Mbit)
K8P6415UQB (64Mbit)
K8P2716UZC (128Mbit)
K8Q2815UQB (128Mbit)
K8P5516UZB (256Mbit)
K8P5615UQA (256Mbit)
Hynix
HY29F400T (4Mbit)
HY29F400B (4Mbit)
HY29F800T (8Mbit)
HY29F800B (8Mbit)
HY29LV400T (4Mbit)
HY29LV400B (4Mbit)
HY29LV800T (8Mbit)
HY29LV800B (8Mbit)
HY29LV160T (16Mbit)
HY29LV160B (16Mbit)
HY29LV320T (32Mbit)
HY29LV320B (32Mbit)
Fujitsu
MBM29LV200TC (2Mbit)
MBM29LV200BC (2Mbit)
MBM29LV400TC (4Mbit)
MBM29LV400BC (4Mbit)
MBM29LV800TA (8Mbit)
MBM29LV800BA (8Mbit)
MBM29LV160T (16Mbit)
MBM29LV160B (16Mbit)
MBM29LV320TE (32Mbit)
MBM29LV320BE (32Mbit)
MBM29DL32XTD (32Mbit)
MBM29DL32XBD (32Mbit)
EON
EN29LV400AT (4Mbit)
EN29LV400AB (4Mbit)
EN29LV800AT (8Mbit)
EN29LV800AB (8Mbit)
EN29LV160AT (16Mbit)
EN29LV160AB (16Mbit)
EN29LV320AT (32Mbit)
EN29LV320AB (32Mbit)
EN29LV640 (64Mbit)
ATMEL
AT27C010 (1Mbit)
AT27C020 (2Mbit)
AT27C040 (4Mbit)
AT27C516 (512Kbit)
AT27C1024 (1Mbit)
AT27C2048 (2Mbit)
AT27C4096 (4Mbit)

SLC NAND Flashes supported:

Micron
NAND128W3A (128Mbit)
NAND256R3A (256Mbit)
NAND256W3A (256Mbit)
NAND512R3A (512Mbit)
NAND512W3A (512Mbit)
NAND01GR3A (1Gbit)
NAND01GW3A (1Gbit)
NAND04GW3B (4Gbit)
NAND04GW3B (4Gbit)
NAND04GW3B (4Gbit)
NAND04GW3B (4Gbit)
NAND04GW3B (4Gbit)
NAND04GW3B (4Gbit)
MT29F2G08AAB (2Gbit)
MT29F1G08ABAEA (1Gbit)
MT29F1G08ABBEA (1Gbit)
MT29F1G08ABADAWP (1Gbit)
MT29F2G08ABBFA (2Gbit)
MT29F2G08ABAFA (2Gbit)
MT29F2G08ABBEA (2Gbit)
MT29F2G08ABAEA (2Gbit)
MT29F4G08BAB (4Gbit)
MT29F4G08AAA (4Gbit)
MT29F4G08ABA (4Gbit)
MT29F8G08BAA (8Gbit)
Toshiba
TC58DVM92A5TA10 (512Mbit)
TC58BVG0S3HTA00 (1Gbit)
TC58NVG0S3HTA00 (1Gbit)
TC58NVG0S3HTAI0 (1Gbit)
TC58NVG1S3HTA00 (2Gbit)
TC58NVG1S3HTAI0 (2Gbit)
TC58NVG2S0HTA00 (4Gbit)
TC58NVG2S0HTAI0 (4Gbit)
TC58BVG2S0HTAI0 (4Gbit)
TH58NVG3S0HTA00 (8Gbit)
TH58NVG3S0HTAI0 (8Gbit)
Winbond
W29N01GV (1Gbit)
W29N02GV (2Gbit)
MXIC
MX30LF1208AA (512Mbit)
MX30LF1GE8AB (1Gbit)
MX30UF1G18AC (1Gbit)
MX30LF1G18AC (1Gbit)
MX30LF1G08AA (1Gbit)
MX30LF2G18AC (2Gbit)
MX30UF2G18AC (2Gbit)
MX30LF2G28AB (2Gbit)
MX30LF2GE8AB (2Gbit)
MX30UF2G18AB (2Gbit)
MX30UF2G28AB (2Gbit)
MX30LF4G18AC (4Gbit)
MX30UF4G18AB (4Gbit)
MX30LF4G28AB (4Gbit)
MX30LF4GE8AB (4Gbit)
MX30UF4G28AB (4Gbit)
MX60LF8G18AC (8Gbit)
MX60LF8G28AB (8Gbit)
Samsung
K9F5608U0D (256Mbit)
K9F1208U0C (512Mbit)
K9F1G08U0A (1Gbit)
K9F1G08U0D (1Gbit)
K9F1G08U0B (1Gbit)
K9F1G08X0 (1Gbit)
K9F1G08U0E (1Gbit)
K9F2G08X0 (2Gbit)
K9F2G08U0C (2Gbit)
K9F2G08U0M (4Gbit)
K9G8G08U0B (1Gbit)
K9W8G08U1M (4Gbit)
K9F4G08U0B (4Gbit)
K9GAG08U0E (16Gbit)
K9GAG08U0M (16Gbit)
K9K8G08U0A (8Gbit)
K9WAG08U1A (16Gbit)
K9NBG08U5A (32Gbit)
Hynix
HY27US08121B (512Mbit)
HY27US08561A (256Mbit)
HY27SS08561A (256Mbit)
HY27US0812(1/2)B (512Mbit)
H27U1G8F2B (1Gbit)
H27U1G8F2CTR (1Gbit)
HY27UF081G2M (1Gbit)
HY27US081G1M (1Gbit)
HY27SF081G2M (1Gbit)
HY27UF082G2B (2Gbit)
HY27UF082G2A (2Gbit)
H27U2G8F2C (2Gbit)
H27U2G6F2C (2Gbit)
H27S2G8F2C (2Gbit)
H27S2G6F2C (2Gbit)
Spansion / Cypress
S34ML01G1 (1Gbit)
S34ML02G1 (2Gbit)
S34ML04G1 (4Gbit)
S34ML01G2 (1Gbit)
S34ML02G2 (2Gbit)
S34ML04G2 (4Gbit)
S34MS01G200 (4Gbit)
S34MS02G200 (4Gbit)
S34MS04G200 (4Gbit)
S34MS01G204 (4Gbit)
S34MS02G204 (4Gbit)
S34MS04G204 (4Gbit)
Zentel
A5U1GA31ATS (1Gbit)
